Product Name
DF-2020-4
Quality of Material
A6NO1S-T5
Surface Treatment
Hard Anodized
Weight
0.38 kg/m
Section Area
140.74mm²
2nd Section Meoment
lx=0.63*10⁴mm⁴, 1y= 0.63*10⁴mm
T-Slot
5
Specification
4000m/m
Color
Silver
Application
Structures of light load

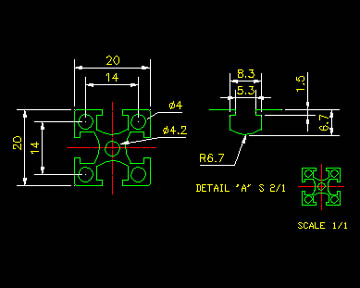

Cad Drawing(DWG)
DWG
(466092 K)
Cad Drawing(DWF)
DWF
(47208 K)
--> DWF file PLUGIN to view in browser
WHIP3.ZIP (2,785KB)
Download
Product Section

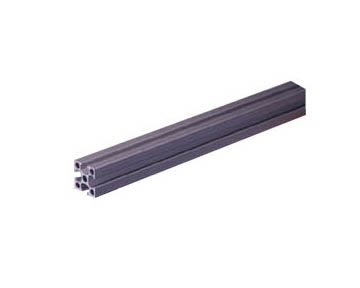

Product Image
Product Image
